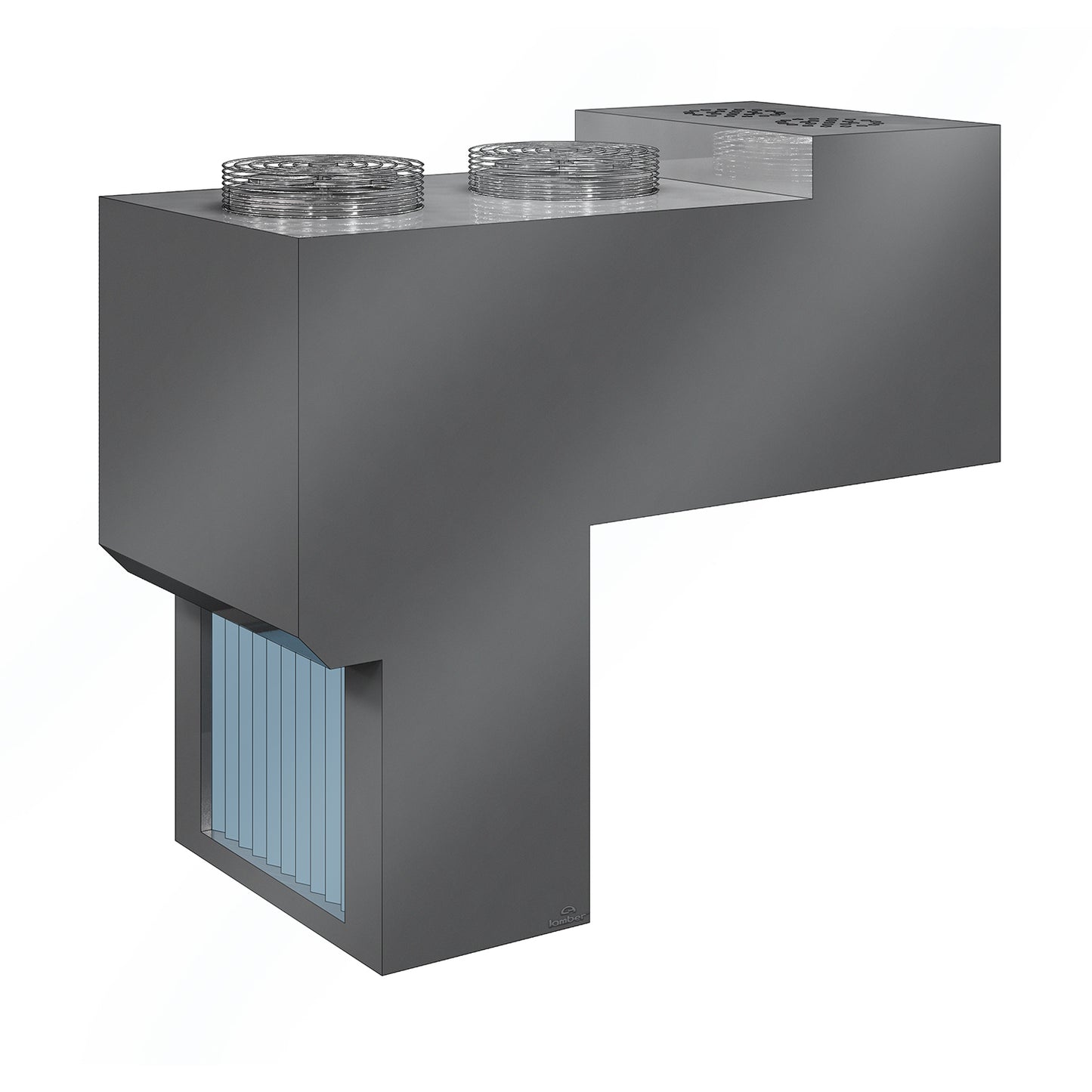

CVCP-3R HEAT EXCHANGER 9 KW
Regular price Ex. GST
Pre Order / By Quote
Regular price Ex. GST
Sale price Ex. GST
$0.00 AUD
Ex. GST
Unit price Ex. GST
per
Shipping calculated at checkout.
Couldn't load pickup availability


Save up to 50-60% of your energy cost
Features:
- Energy regeneration with Lamber washing systems
- The intelligent heat regeneration
- The system exploits the heat produced in the cooling cycle, which allows to constantly regenerate energy from the hot air produced in the machine, to preheat the rinsing water.
- This device allows feeding the machine with cold water, so as to save a lot of energy (at least 15.5 kW).

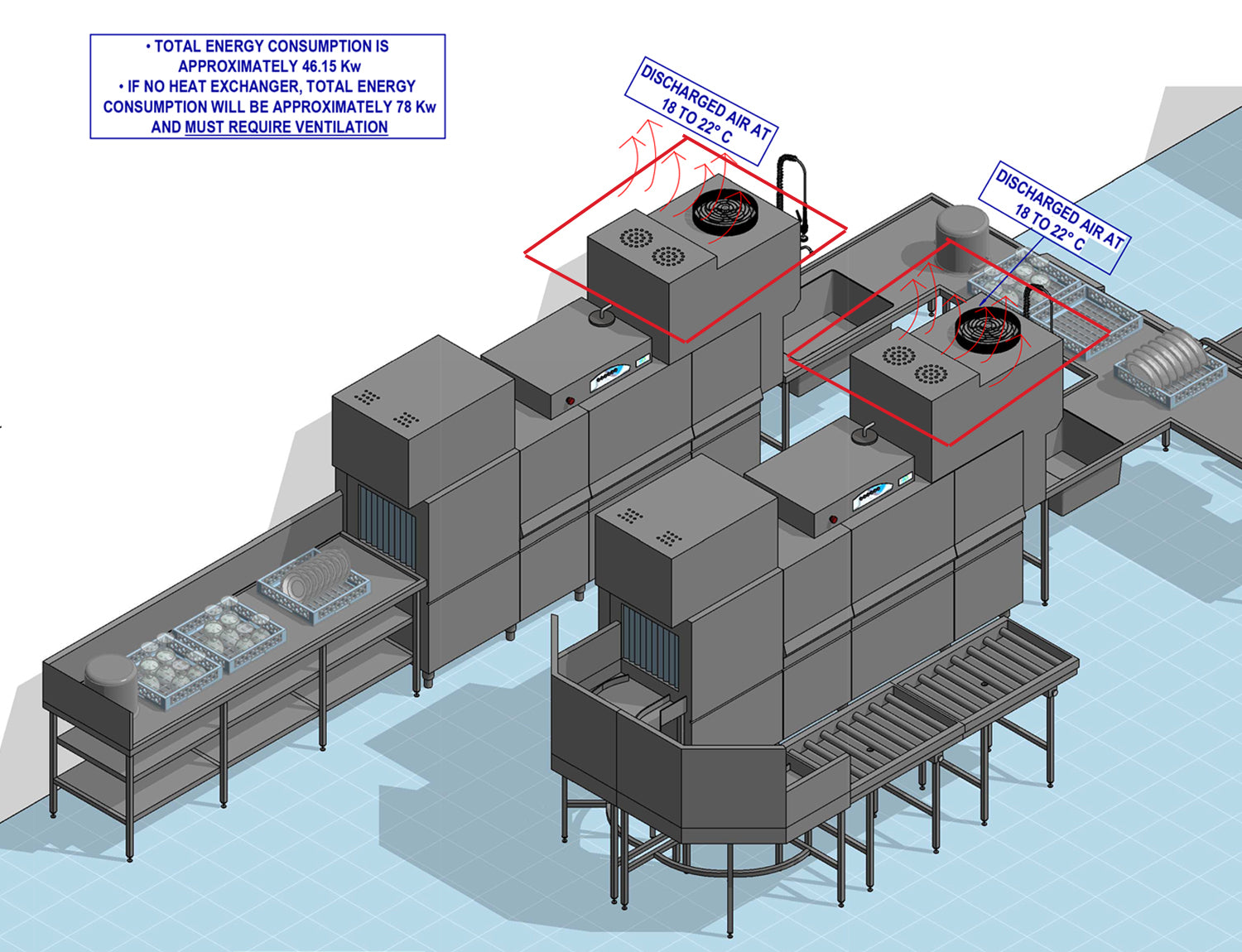

- The extracted air is so cooled and dehumidified that it can be fed back into the working room thus improving considerably the ambient condition of the dishwashing area.
- The output air temperature is in fact nearly 18°-22° C.
- Besides the saving about the washing system, there is also one concerning the additional costs for a connection to a ventilation/extraction system in the dishwashing area to create optimum working conditions.
- The system exploits the functioning principle of the Heat Pump to heat the rinsing water.
- The hot air and the steam which come out from the machine are sucked by the pipe coil and give their heat to the water that flows in the pipes.
- Then the water goes through a heat exchanger, part of the cooling cycle fed by the Heat Pump.
- This plate-type exchanger gives the heat to the water that comes from the pipes of the pipe coil.
- The total regeneration is about 15.5 kW for the CVCP model, 23 kW for the CVCP/R model, and about 32 kW for CVCP/3R model.

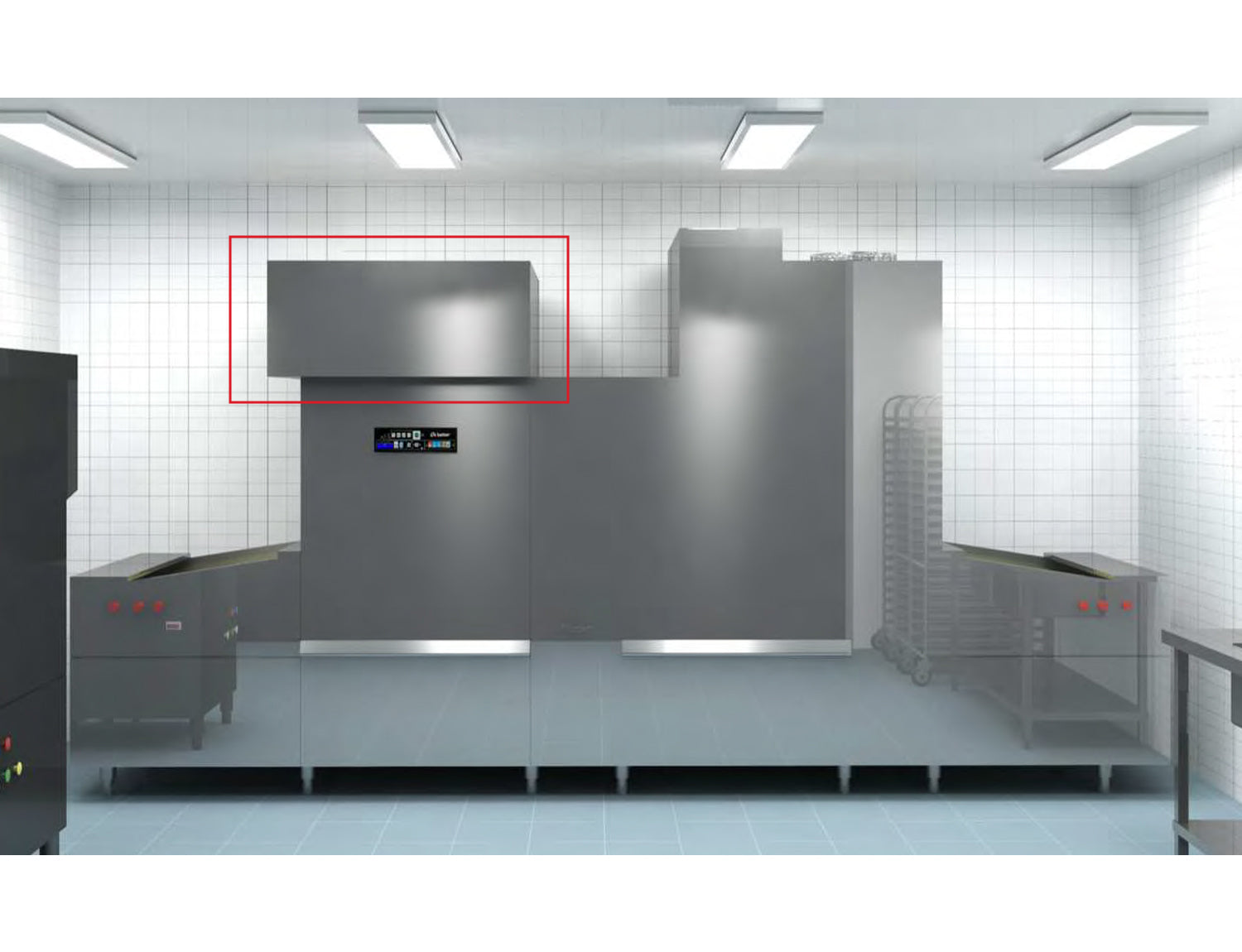

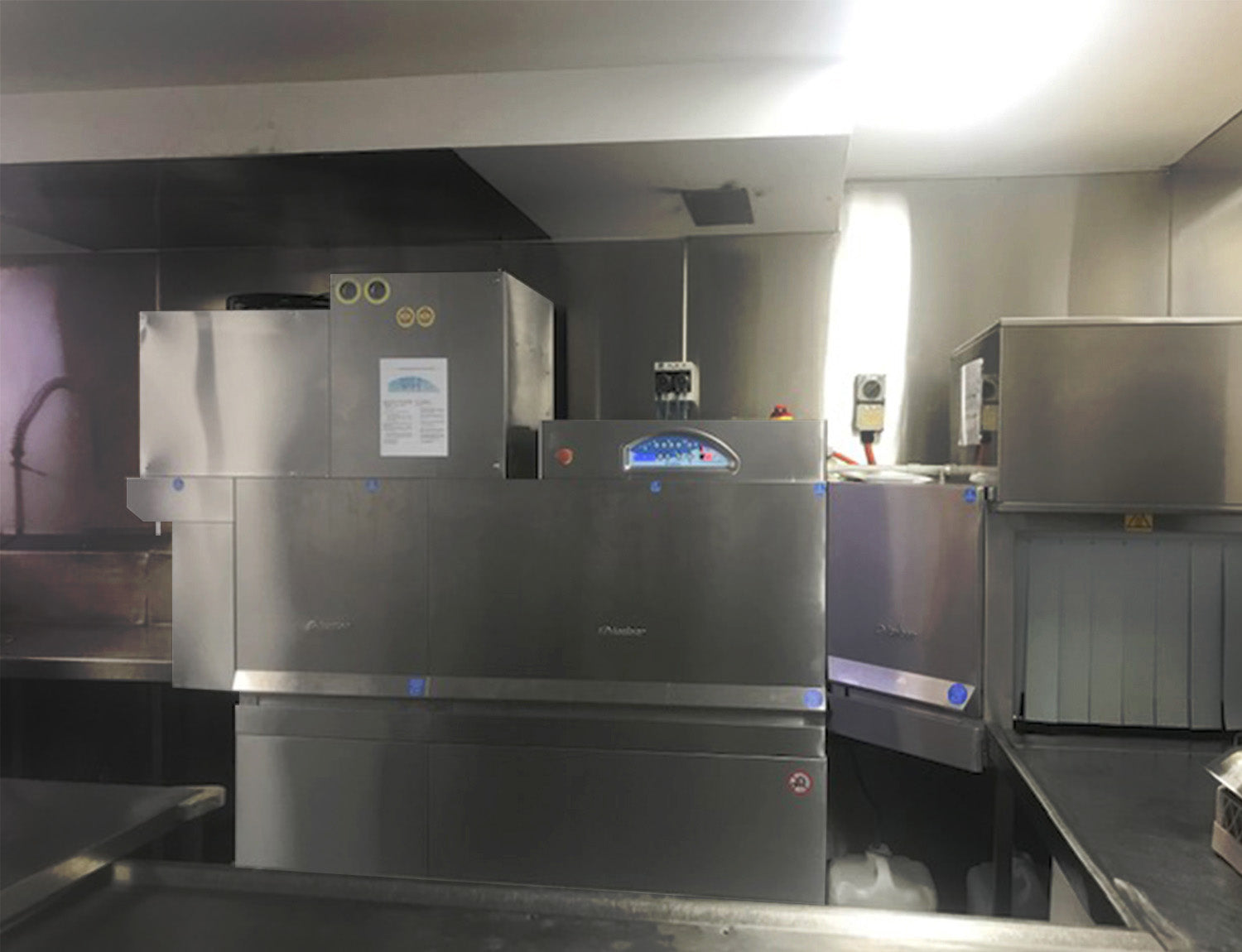

- This pump can be installed to all Lamber’s with a Pull-through rack and Belt-towing Dishwashers.
Specifications:
Technical Data | CVCP | CVCP/R | CVCP/3R |
COMPRESSOR RATED POWER | kW 3.5 | kW 5 | kW 9 |
COOLING GAS | R134 | R134A | R134A |
OUTPUT AIR TEMPERATURE | 18 / 22 C | 13 C | 13 C |
OUTPUT AIR HUMIDITY | 45 % | 45 % | 45 % |
LATENT HEAT REDUCTION | 90 % | 90 % | 90 % |
COOLING POWER | kW 10.55 | kW 14.6 | kW 24.2 |
WATER CONNECTION | 12 / 15C | 12 / 15C | 12 / 15C |
TOTAL EXCHANGE SURFACE - HOT | 21.9 mq | 21.9 mq | 32.8 mq |
TOTAL EXCHANGE SURFACE - COLD | 7.28 mq | 21.9 mq | 43.8 mq |
HEATING ENERGY SAVING | kW 15.5 | kW 23 | kW 32 |
Warranty: 12 Months Labour / 36 Months Parts
