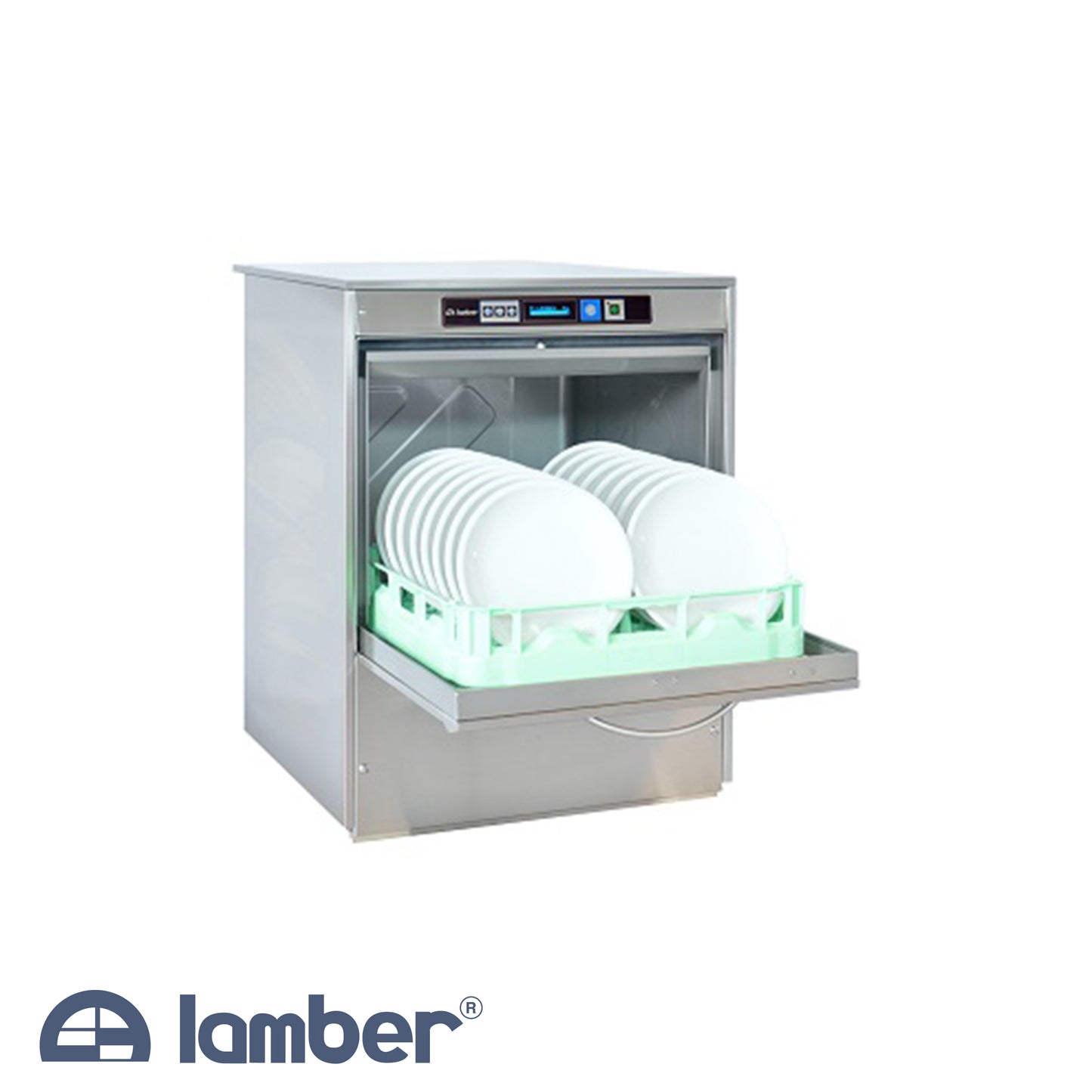

F92-DY-HS F92MARINE COMMERCIAL DISHWASHER

COMMERCIAL DISHWASHER with interactive graphic display

Features:

• Stainless steel construction 18/10 AISI 304
• Insulated double skin
• Rotating lower and upper wash in stainless steel
• Rotating lower and upper rinse in stainless steel
• Soft-touch electronic control panel
• New control panel with interactive graphic display

• Wash and rinse temperature electronic display

• Complete programming of all the washing parameters

• Cycle counter

• Service maintenance function

• Disinfection cycle ideal for hospitals

• Strengthened sanitization cycle

• Constante rinse boiler system (RCB)

• Rinse-aid dispenser

• Economy thermostat

• Drawn tank with self-cleaning bottom

• Thermocontrol (device which guarantees the selected temperature for every rinsing cycle even in case of nonstop work)
• Cycle start with soft-start system
• Self-washing slanted tank with rounded edges
• Integral tank drawer filters
• Automatic tank loading

• Door opening safety device

• Extractable control panel


Specifications:

• Power: Volt 400/3N/50 Hz, Total rating: 6,650 W

• Boiler capacity 5 Liters / Tank capacity: 18 Liters

• Water connections: 45°C to 55°C,

• Inlet: 19 mm (3/4"), Outlet: 32 mm (1"1/4)

• Basket dimensions: 500 x 500 mm

• Dishes er Basket: 12÷18 Nr.

• Net Weight: 74 kg. / Gross Weight: 84 kg.

• POWER: 6.65 kW / 15Amp GPO / 400 V / 50H

• Single Phase, 15A at 600mm AFFL, NO ELECTRICAL OUTLET BEHIND THE MACHINE)

• Water, Drain, Tundish at 150mm AFFL

• Weight 84 kg

• Unit Dimensions: W600 x D650 x H820 mm

• Packing Dimensions: W640 x D740 x H1000 mm

Warranty: 12 Months Labour / 24 Months Parts
