LAVA RANGE

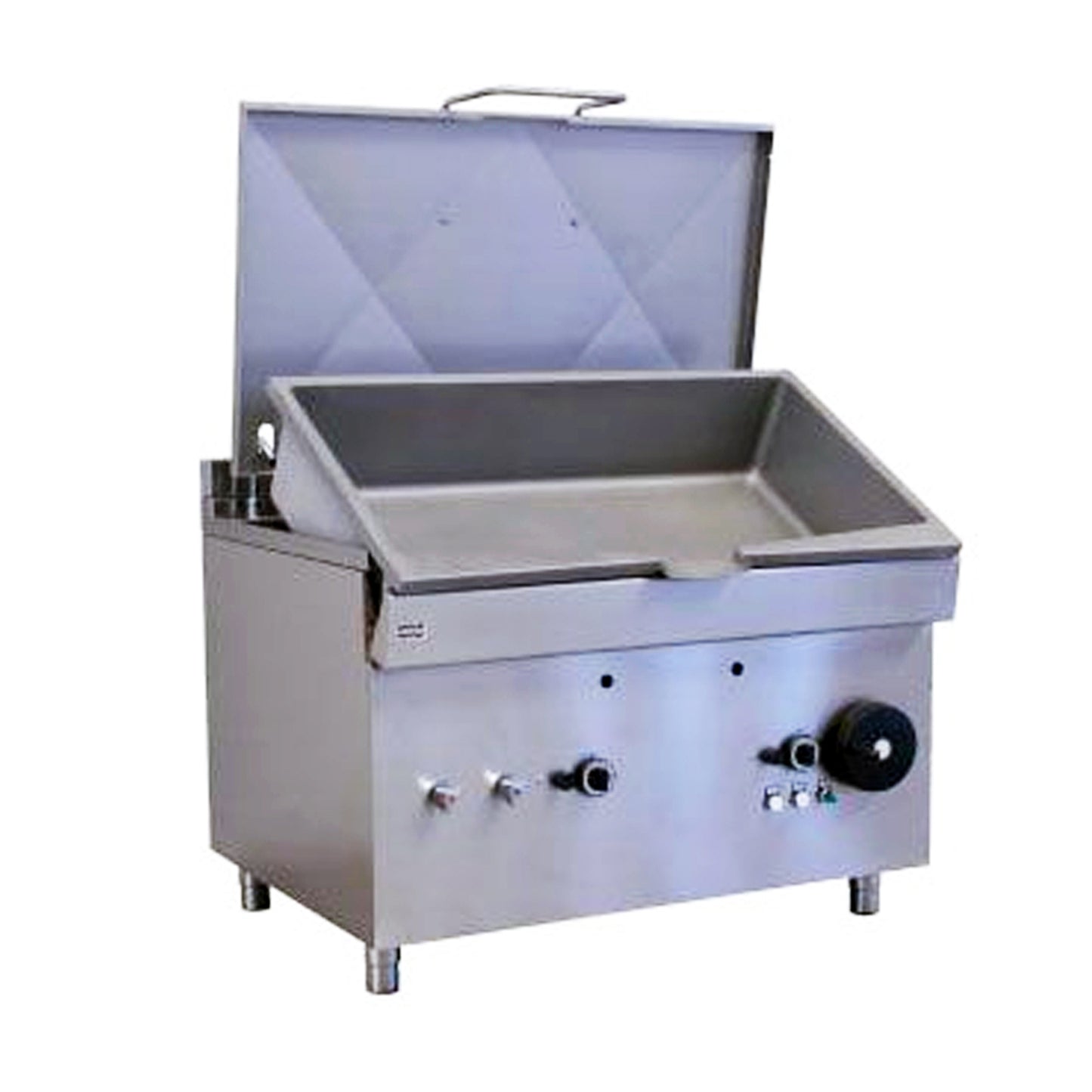

LABRQ200ED TILTING BRATT PAN 200 LITRES

LABRQ200ED TILTING BRATT PAN 200 LITRES

Pre Order / By Quote
$0.00 AUD Ex. GST
Sale Sold out
Shipping calculated at checkout.

Square-shaped bratt pan with a square tank, designed to be positioned against a wall, alone, or in an array.

BR is suitable for restaurants and small and medium cafeterias. For its use on ships & ferries, the appliance is provided with floor anchoring means.

On request, the appliance can be supplied in an automatic tilting version. BR versatile application, size & low consumption make it ideal for the preparation of food products also in small cooking establishments.

Technical Features:

  • Fine Satin Finish
  • Tank is Constructed in Stainless Steel
  • The Bottom is Realized in Steel or Bimetal (Compound)
  • Balanced Lid Stainless Steel with Resistant Handle
  • Water Fill by Tap
  • Inox Adjustable Legs
  • Stainless Steel Lid with Balanced Springs and Stainless Steel Handle
  • Stainless Steel Support Frame and Panels
  • Thermal Insulation Assured by High-Density Ceramic Fiber 64/128
    Panels in AISI 304 Stainless Steel

Tilting Mechanism:

  • Manual Tilting Mechanism
  • Automatic Tilting on Request

Direct Electric Version:

  • Heating with a Battery of Electric Heaters
  • Safety Thermostat to Prevent Overheating and Keeps the Equipment from Operating Without Water
  • Temperature is Controlled by a Thermostat (100°C - 250°C)

    Specifications:

    • Capacity: 200 Litres
    • Dimension: L1,600 x W900 x H850 mm
    • Electric Supply: 400 V / 3N / 50 Hz / 20 KW

    Warranty: 12 Months Labour / 36 Months Parts
