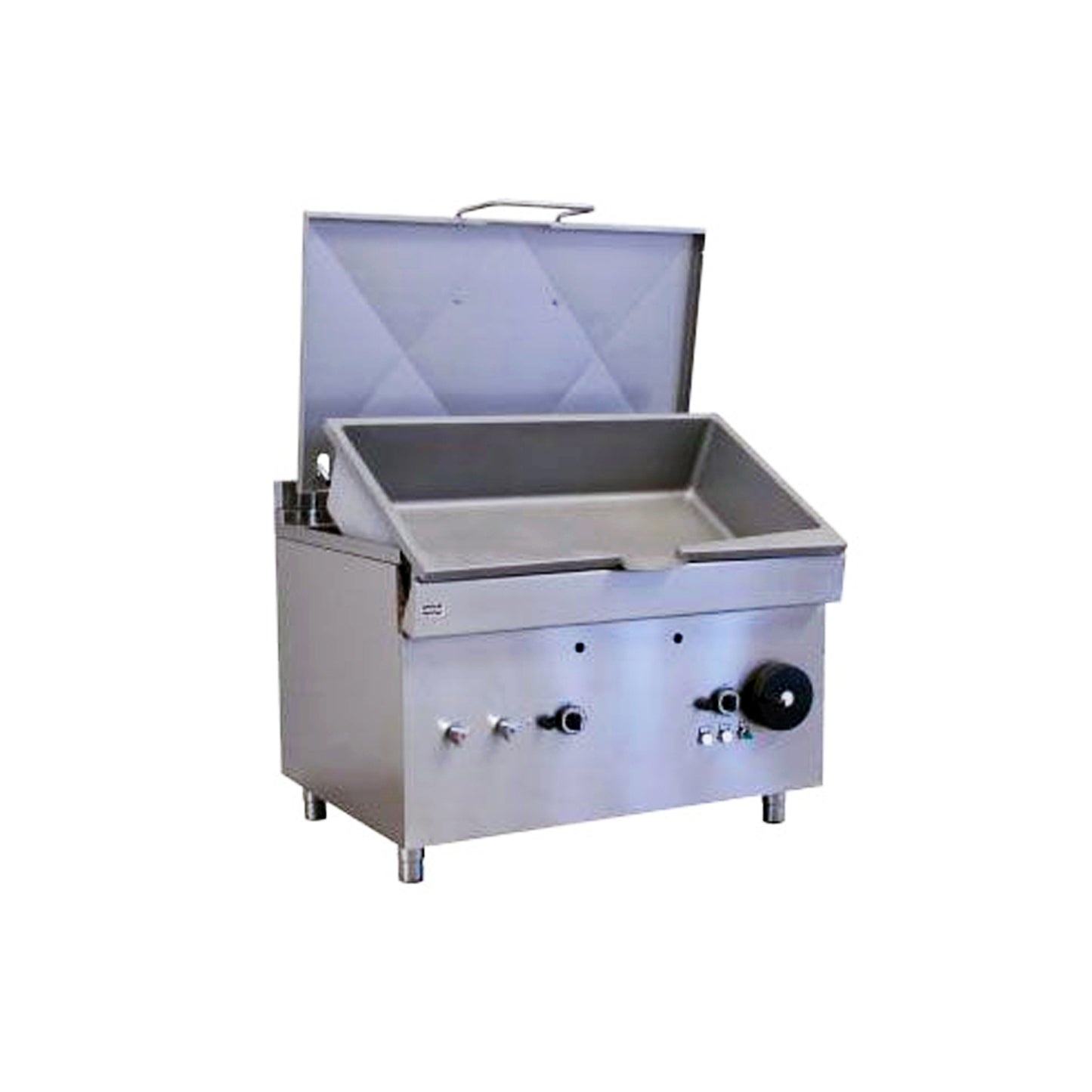

LABRQ80ED TILTING BRATT PAN 88 LITRES

Square-shaped bratt pan with a square tank, designed to be positioned against a wall, alone or in the array.

BR is suitable for restaurants and small and medium cafeterias. For its use on ships & ferries, the appliance is provided with floor anchoring means.

On request, the appliance can be supplied in an automatic tilting version. BR versatile application, size & low consumption make it ideal for the preparation of food products also in small cooking establishments.

Technical Features:

• Fine Satin Finish
• Tank is Constructed in Stainless Steel
• The Bottom is Realized in Steel or Bimetal (Compound)
• Balanced Lid Stainless Steel with Resistant Handle
• Water Fill by Tap
• Inox Adjustable Legs
• Stainless Steel Lid with Balanced Springs and Stainless Steel Handle
• Stainless Steel Support Frame and Panels
• Thermal Insulation Assured by High-Density Ceramic Fiber 64/128
  Panels in AISI 304 Stainless Steel

Tilting Mechanism:

• Manual Tilting Mechanism
• Automatic Tilting On Request

Direct Electric Version:

• Heating with a Battery of Electric Heaters
• Safety Thermostat to Prevent Overheating and Keeps the Equipment from Operating Without Water
• Temperature is Controlled by a Thermostat (100°C - 250°C)

Specifications:

• Capacity: 88 Litres
• Dimensions: L800 x W900 x H850 mm
• Electrical Supply: 400 V / 3N / 50 Hz / 10 KW

Warranty: 12 Months Labour / 36 Months Parts
