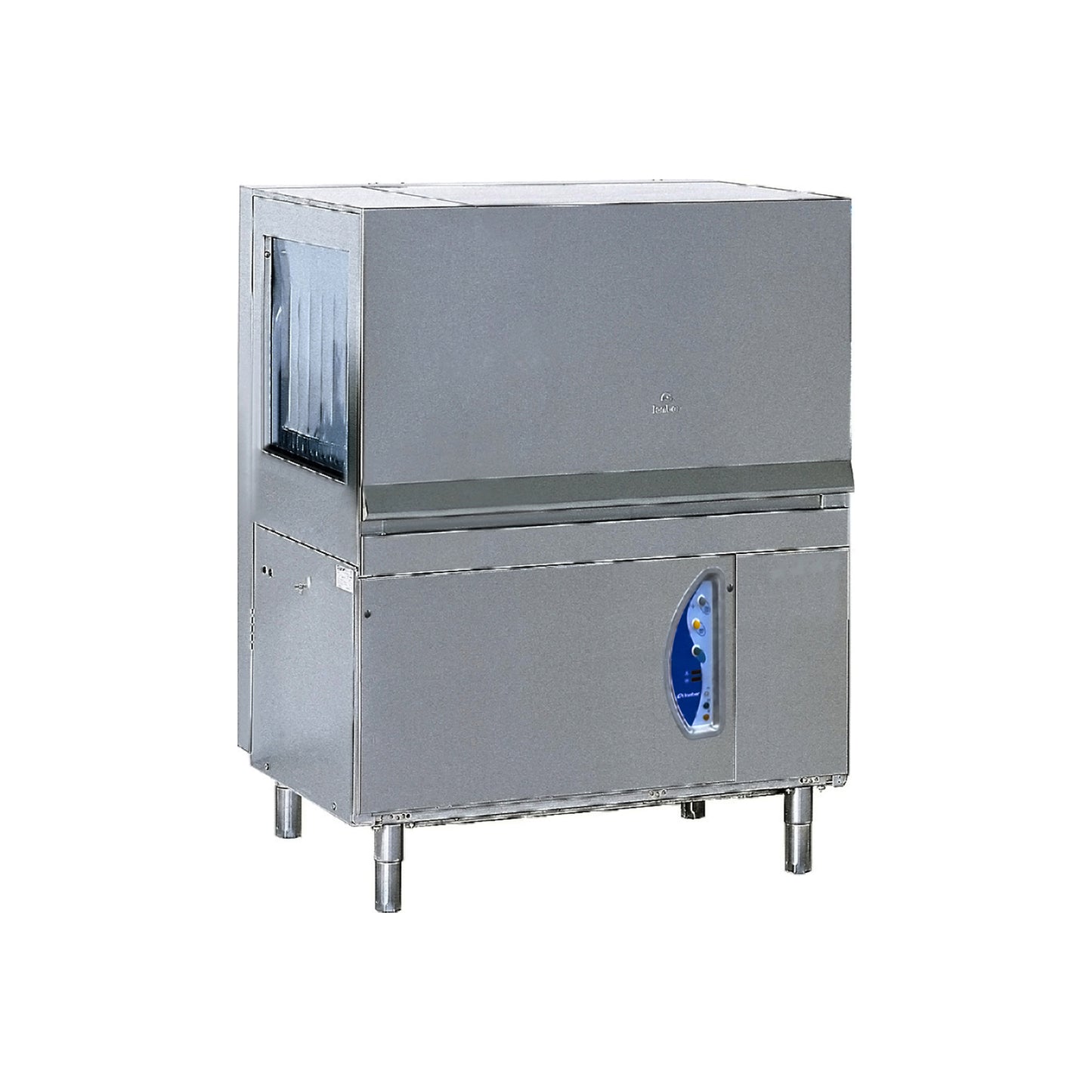

M115 RACK CONVEYOR 3 BASKETS

Features:

• CHARACTERISTICS
• Body and tank in stainless steel construction 18/10 AISI 304,
• Tunnel composition:
• 1 Wash - wash arms : 3 upper + 2 lower
• 1 Rinse - rinse arms : 1 upper + 1 lower
• Completely automatic,
• Upper and lower fixed washing (60C)
• Upper and lower fixed rinsing (85-90C)
• Washing and rinsing arms in stainless steel constructions, easy disassembly and interchangeable,
• Double skin with thermic and acoustic insulation ;
• Slanted tank with rounded edges,
• Stainless steel autodraining washing pump,
• Counterbalanced door
• Front panel composition::
• Main ON/OFF switch;
• Start pushbutton
• Stop pushbutton
• Emergency pushbutton
• Machine ON indicator
• Machine ready indicator
• Overload cutout indicator
• Frontal maintenance
• Automatic tank loading
• Rinse econmizer
• Tank and pump filters
• Insulated boiler
• SAFETY
• Feet adjustable and strong
• Pressure-switch protection for Heating elements
• Thermic protection for washing pump
• Automatic stopping of pull-through in case of foreign bodies
• Low voltage control circuit (24V) for greater safety during work operation
• Dishes (Stop with End Micro-switch on the exit table
• Door opening safety device

Specifications:

• One qutomatic feed
• speed 1.20 mt/m'
• Hour capacity: 2160 dishes/H
• Hour baskets production : 120
• Max dimensions for wash: 400 mm heigth - 500 mm width
• Basket dimensions: 500x500 mm
• Washing pump: 1,1 kW
• Tank heating : 6 kW (electrice)
• Boiler heating; 12 kW (55)
• Geared motor : 0,13 kW
• Total power: 13,13 kW (55 electric)
• Voltage 400V/50Hz
• Low-voltage control circuit 24V
• Cycle water consumption: 210 liters/h
• Hardness between 5 and 10F
• Rinsing water temperature: 85-90C
• Dimensions : 1150x815xh1650mm
• Noise: db<70
• Net Weight : 180 kg
• Dimensions: 1150x815xh1650mm
• Weight: 180kg
