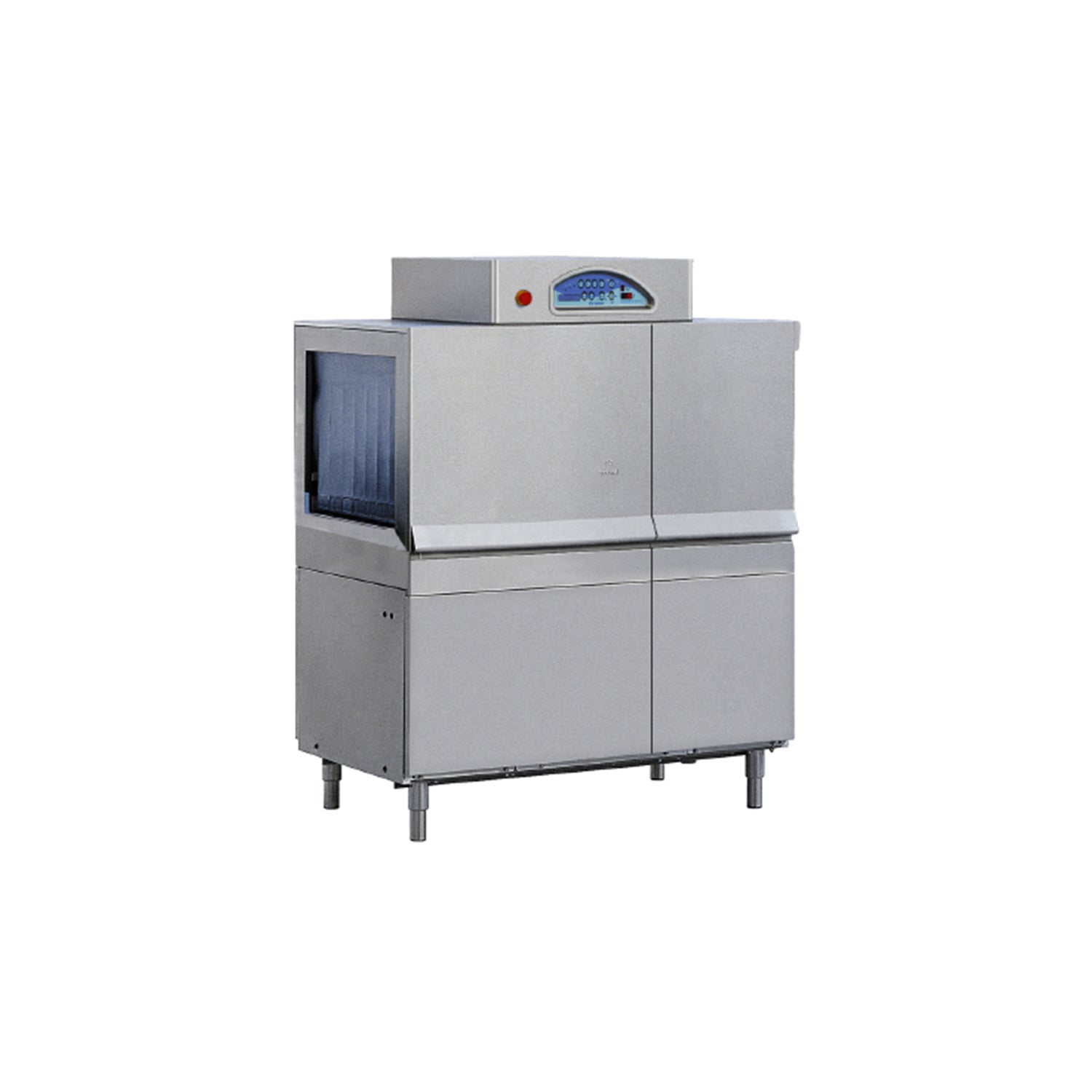

M130 RACK CONVEYOR 4 BASKETS

Features:

• Features:
• Body and tank in stainless steel construction 18/10 AISI 304, 12/10 thick
• Tunnel composition:
• 1 Wash - wash arms : 3 upper + 2 lower
• 1 Ecorinse (additional rinse) - rinse arms : 1 upper + 1 lower
• 1 Rinse - rinse arms : 1 upper + 1 lower
• Completely automatic
• Upper and lower fixed washing (60C)
• Ecorinse system for reduction in consumption of water, energy, detergent
• Upper and lower fixed rinsing (85-90C)
• Washing and rinsing arms in stainless steel constructions,
• easy to disassemble and interchange
• Double skin with thermic and acoustic insulation
• Slanted tank with rounded edges
• Stainless steel Autodraining washing pump
• Counterbalanced door
• Front panel composition:
• Main ON/OFF switch
• Stop pushbutton
• Start pushbutton
• Machine ON indicator
• Overload cutout indicator
• Tank thermometers
• Frontal maintenance
• Automatic tank loading
• Rinse economizer
• Tank and pump filters
• Insulated Boiler
• SAFETY
• Adjustable and strong feet
• Pressure switch protection for heating elements
• Thermic protection for washing pump
• Automatic stopping of pull-through in case of foreign bodies
• Low voltage control circuit (24V) for greater safety during work operation
• Dishes (Stop with End Micro-switch on the exit table)
• Door opening safety device

Specifications:

• One automatic speed
• 1st speed: 0,830 mt/m'
• Hour capacity:1600 dishes/h
• Baskets per hour: 100
• Max dimensions for wash: 420mm heigth - 500 mm width
• Basket dimensions: 500x500mm
• Washing pump: 1,5 kW
• Tank heating: 9 kW (electric) 21 kg/h (steam)
• Boiler heating: 15 kW(55C) 27 kW (water 12C) (electric)
• 24 Kg/h (55C) 43 kg/h (12C) (steam)
• Geared motor : 0,15 kW
• Total power: 25,80 kW (55C electric)
• 37,80 kW(12C electric)
• 45 kg/h (55C steam)
• 64 kg/h (12C steam)
• Voltage 400V/3/50Hz
• Low voltage control circuit 24V
• Cycle water consumption: 300 liters/h
• Hardness between 5C and 10CF
• Rinsing water temperature: 85/90C
• Dimensios : 1500x815x h1785mm
• Noise: dB 69 Net Weight: 255 kg
• Dimensions: 1500x815x h1785mm
• Weight: 255kg

Warranty:

• Contact us for warranty details
