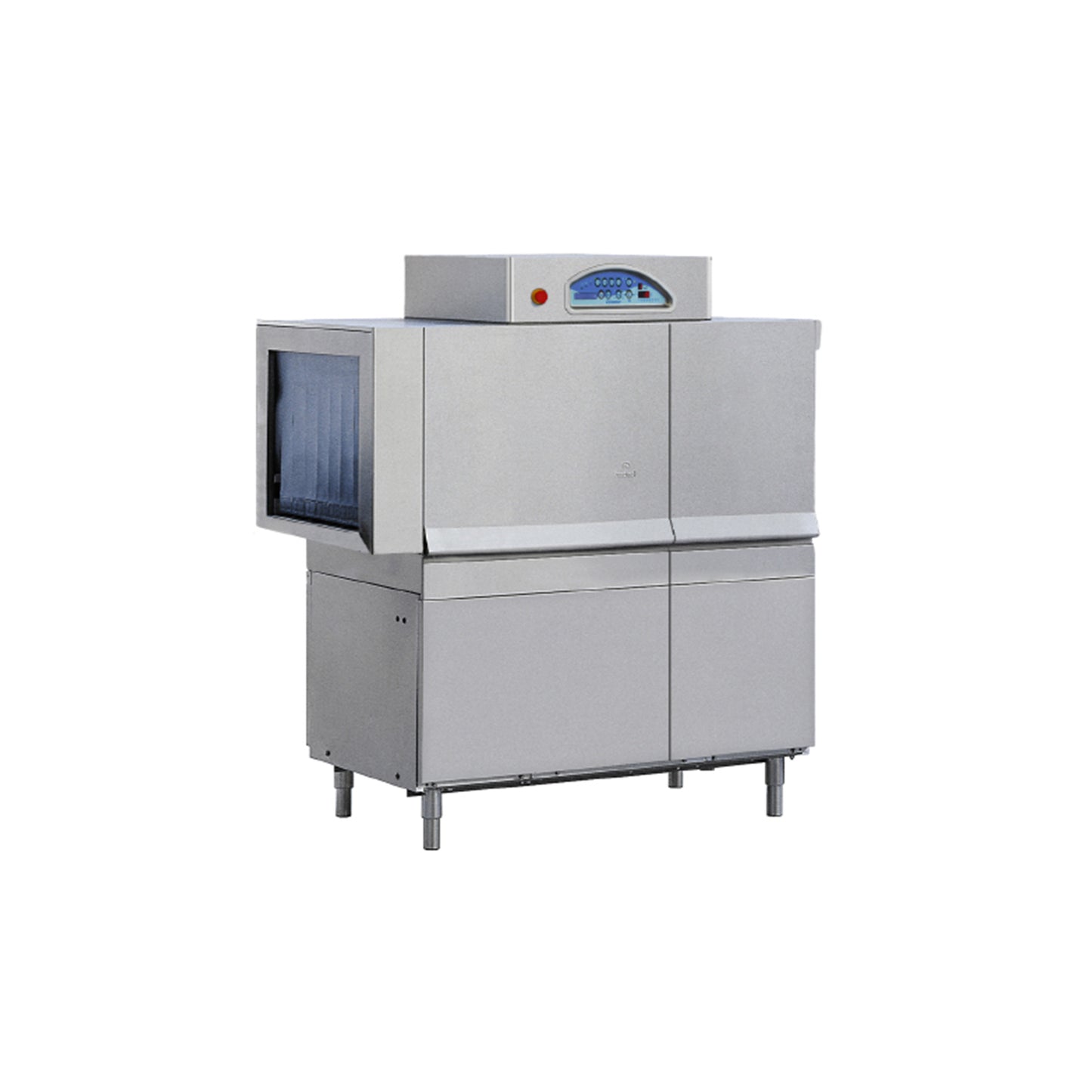

M150 RACK CONVEYOR 4 BASKETS

Features:

• CHARACTERISTICS
• Body and tank in stainless steel construction 18/10 AISI 304,
• Tunnel composition:
• 1 Pre-wash - wash arms : 3 upper + 1 lower
• 1 Wash - wash arms : 3 upper + 2 lower
• 1 Rinse - rinse arms : 1 upper + 1 lower
• Completely automatic,
• Pre-washing (40C)
• Upper and lower fixed washing (60C)
• Upper and lower fixed rinsing (85-90C)
• Washing and rinsing arms in stainless steel constructions,
• easy disassembly and interchangeable,
• Double skin with thermic and acoustic insulation ;
• Slanted tank with rounded edges,
• Stainless steel autodraining washing pump,
• Counterbalaced door
• Front panel composition ::
• Main ON/OFF switch;
• Start pushbutton
• Stop Pushbutton
• Emergency pushbutton
• Machine ON indicator
• Machine ready indicator
• Water protection
• Overload cutout indicator
• Frontal maintenance
• Automatic tank loading
• Rinse economizer
• Tank and pump filters
• Insulated Boiler
• SAFETY
• Feet adjustable and strong
• Pressure-switch protection for Heating elements
• Thermic protection for washing pump
• Automatic stopping of pull-through in case of foreign bodies
• Low voltage control circuit (24V) fro greater safety during work operation
• Dishes (Stop with End Micro-switch on the exit table)
• Door opening safety device

Specifications:

• One automatic feed
• Speed 1.2m/min / 1,85 mt/m'
• Hour capacity: 2700/4500 dishes/H
• Hour baskets production : 150/250
• Max dimensions for wash : 400 mm heigth - 500 mm width
• Basket dimensions: 500x500 mm
• Pre-washing pump : 1,1 kW
• Washing pump: 1,5 kW
• Tank heating : 9 kW (electric)
• Boiler heating: 18 kW (55c)
• Geared motor : 0,13 kW
• Total power: 29,6 kW (55c electric)
• Voltage 400V/3/50Hz
• Low-voltage control circuit 24V
• Cycle water consumption : 210 liters/h
• Hardness between 5 and 10F
• Rinsing water temperature: 85-90C
• Dimensions : 1950x815x h1650mm
• Noise: dB<70 Net Weight : 290 kg
• Dimensions: 1950x815x h1650mm
• Weight: 290kg

Warranty:

• Contact us for warranty details

All prices and specifications are subject to change without prior notice
