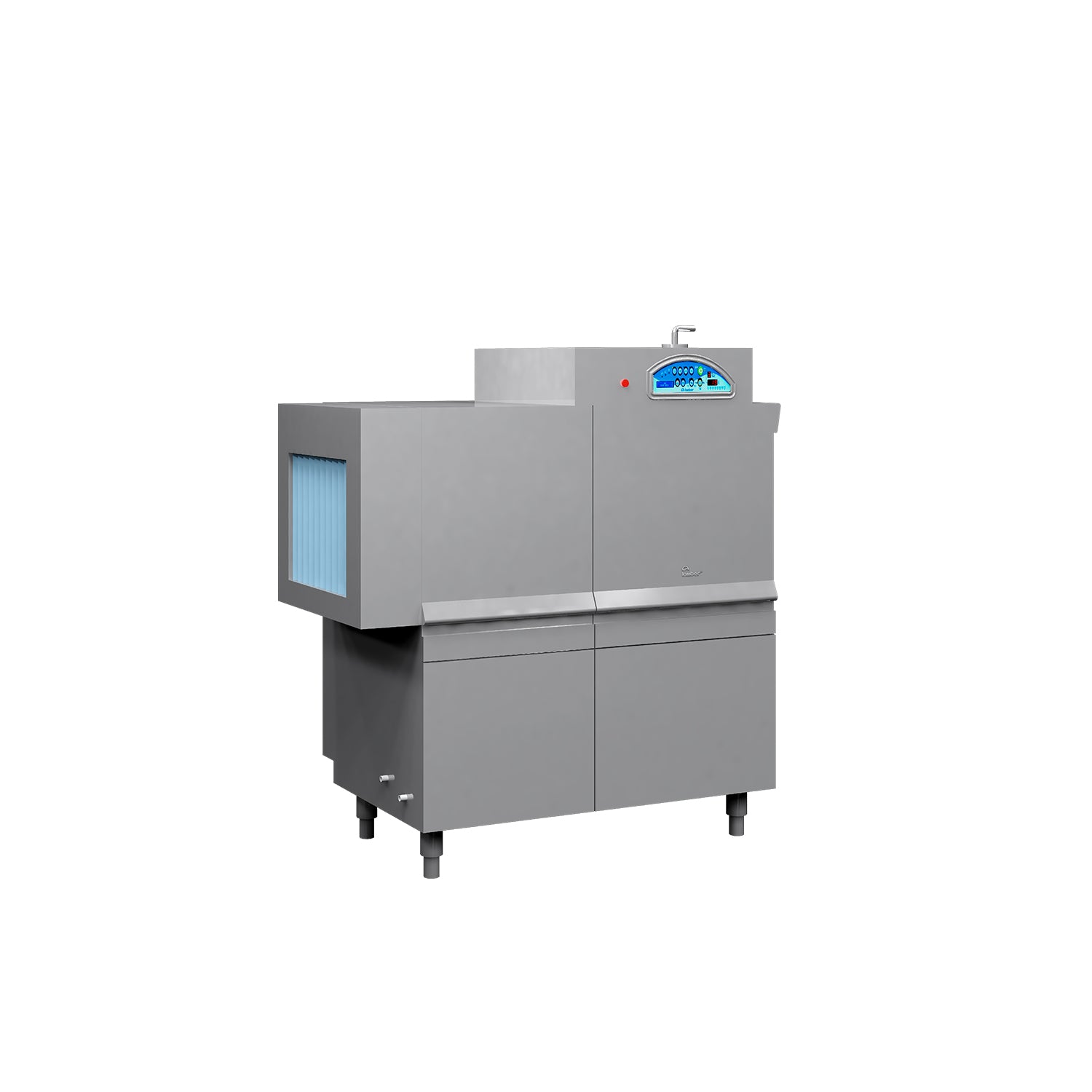

M200-HK CORNER RACK CONVEYOR 2 SPEED 130 / 200 BASKETS

Features:

• Features:
• Dishwasher with pull through rack
• Body and tank in stainless steel construction 18/10 AISI 304
• Tunnel composition:
• 1 wash - wash arms: 4 upper + 3 lower
• 1 Rinse - rinse arms : 1 upper + 1 lower
• Completely automatic,
• Upper and lower fixed washing (60°C)
• Upper and lower fixed rinsing (85-90°C)
• Washing and rinsing arms in stainless steel constructions,
• Easy disassembly and interchangeable.
• Double skin with thermic and acoustic insulation;
• Slanted tank with rounded edges,
• Stainless steel auto draining washing pump,
• Counterbalanced door
• *Front panel composition:
• Low tension keyboard drives,Digital display , pcb board programming.
• Alerts and functions shown on a display,rinse boiler, speed selection
• Drying,pre-rinse,autotimer pushbuttons.
• Rinse,fluxmeter lights, basket entry-heat pump-washing tank water level lights.
• Automatic tank loading
• Thermometers for automatic control temperatures of the wash and rinse water
• Rinse economizer,Tank and pump filters,Insulated Boiler

Specifications:

• SAFETY
• Adjustable and strong feet
• Pressure-switch protection for heating elements
• Thermic protection for washing pump
• Automatic stopping of pull-through in case of foreign bodies
• Low voltage control circuit (24V) fro greater safety during work operation
• Dishes (Stop with End Micro-switch on the exit table)
• Door opening safety device
• TECHNICAL SPECIFICATIONS
• Two automatic speeds
• 1st Speed 0,660 mt/m'; 2nd speed 1,040 mt/m'
• Hour capacity: 1280/2000+ dishes/H
• Hour baskets production: 133/206
• Max dimensions for wash: 420 mm height - 500 mm width
• Basket dimensions: 500x500 mm
• Washing pump: 2, 2 kW
• Tank heating: 6 kW (electric-55C) 9kW (electric-12C) 21 kg/h (steam)
• Boiler heating: 18 kW (55°) 27 kW (water 12°) (electric)
• 26 kg/h (55°) 43 kg/h (12°) (steam)
• Geared motor: 0, 15 kW
• Total power: 26, 35 kW (55° electric)
• 35,35 kW (12° electric)
• 47 kg/h (55° steam)
• 64 kg/h (12° steam)
• Voltage 400V/3/50Hz
• Low-voltage control circuit 24V
• Voltage 400V/3/50Hz
• Low-voltage control circuit 24V
• Cycle water consumption: 270 litres/h
• Hardness between 5° and 10°F
• Rinsing water temperature: 85-90°C
• Dimensions: 1500 x 815x h1650mm
• Noise: dB<70 Net Weights: 255 kg
• Brand: LAMBER
• Dimensions: 1500 x 815x h1650mm
• Weight: 255kg

Warranty:

• Contact us for warranty details
