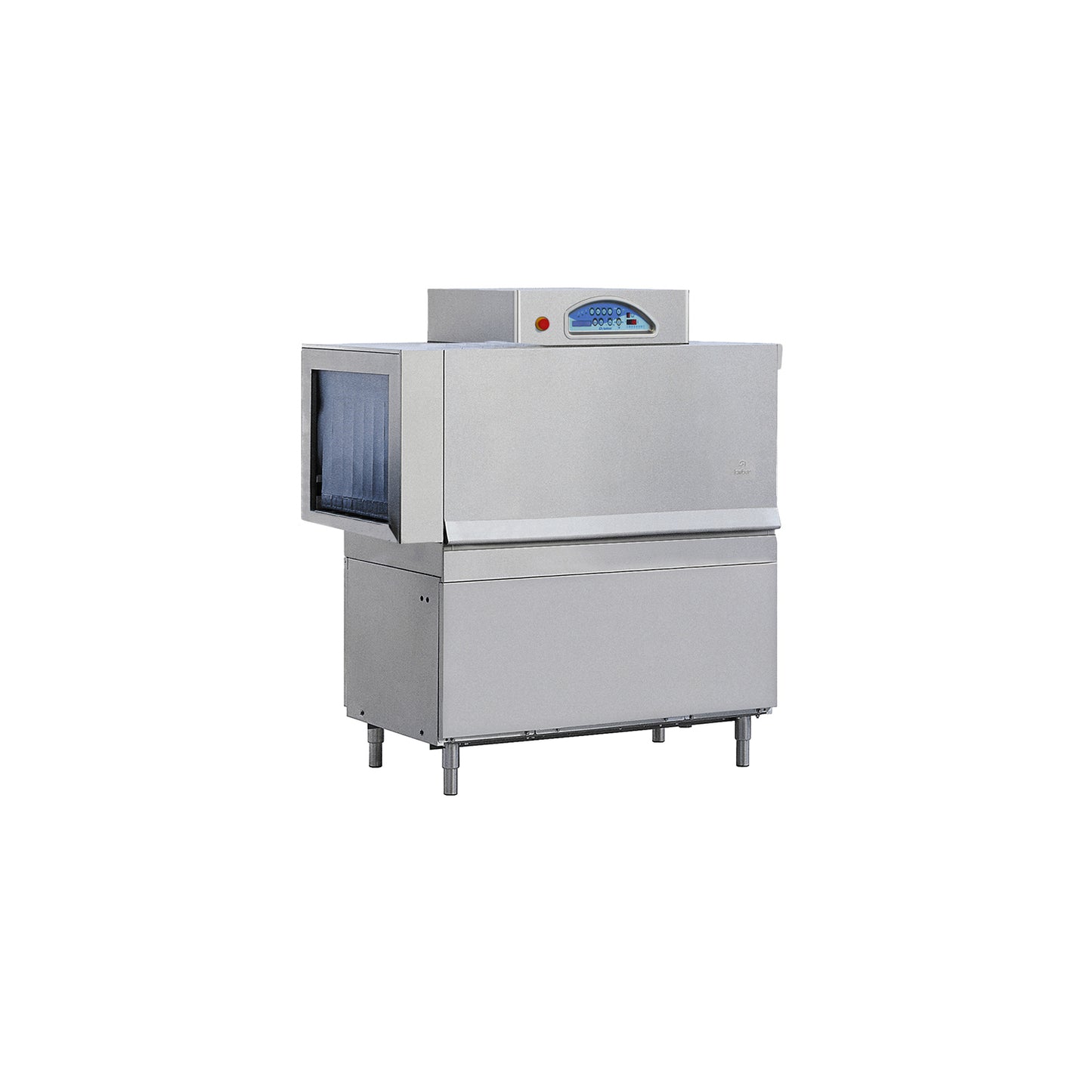

MATIC-10 RACK CONVEYOR 5 BASKETS

Features:

• Features:
• Body and tank in stainless steel construction 18/10 AISI 304,
• Tunnel composition:
• 1 Wash - wash arms : 4 upper + 2 lower
• 1 Rinse - rinse arms : 1 upper + 1 lower
• Completely automatic,
• Upper and lower fixed washing (60°C)
• Upper and lower fixed rinsing (85-90°C)
• Washing and rinsing arms in stainless steel constructions,
• easy disassembly and interchangeable,
• Double skin with thermic and acoustic insulation ;
• Slanted tank with rounded edges,
• Stainless steel autodraining washing pump,
• Counterbalaced door
• Front panel composition ::
• Main ON/OFF switch;
• Stop Pushbutton
• Machine ON indicator
• Machine ready indicator
• Water protection
• Overload cutout indicator
• Frontal maintenance
• Automatic tank loading
• Thermometers for automatic control temeperatures of the wash-and rinse water
• Rinse economizer
• Tank and pump filters
• Insulated Boiler
• SAFETY
• Feet adjustable and strong
• Pressure-switch protection for Heating elements
• Thermic protection for washing pump
• Automatic stopping of pull-through in case of foreign bodies
• Low voltage control circuit (24V) fro greater safety during work operation
• Dishes (Stop with End Micro-switch on the exit table)
• Door opening safety device

Specifications:

• One automatic feed
• Speed 1.20 mt/m'
• Hour capacity: 2590 dishes/H
• Hour baskets production : 134 Racks
• Max dimensions for wash : 420 mm heigth - 500 mm width
• Basket dimensions: 500x500 mm
• Washing pump: 1,5 kW
• Tank heating : 6 kW (electric) 21 kg/h (steam)
• Boiler heating: 15 kW (55°) 27 kW (water 12°) (electric)
• 24 Kg/h (55°) 43 kg/h (12°) (steam)
• Geared motor : 0,15 kW
• Total power: 22,65 kW (55° electric)
• 37,65 kW (12° electric)
• 45 kg/h (55° steam)
• 64 kg/h (12° steam)
• Voltage 400V/3/50Hz
• Low-voltage control circuit 24V
• Cycle water consumption : 270 liters/h
• Hardness between 5° and 10°F
• Rinsing water temperature: 85-90°C
• Dimensions : 1500x815x h1650mm
• Noise: dB<70 Net Weight : 225 kg
• Dimensions: 1500x815x h1650mm
• Weight: 255kg

Warranty:

• Contact us for warranty details
