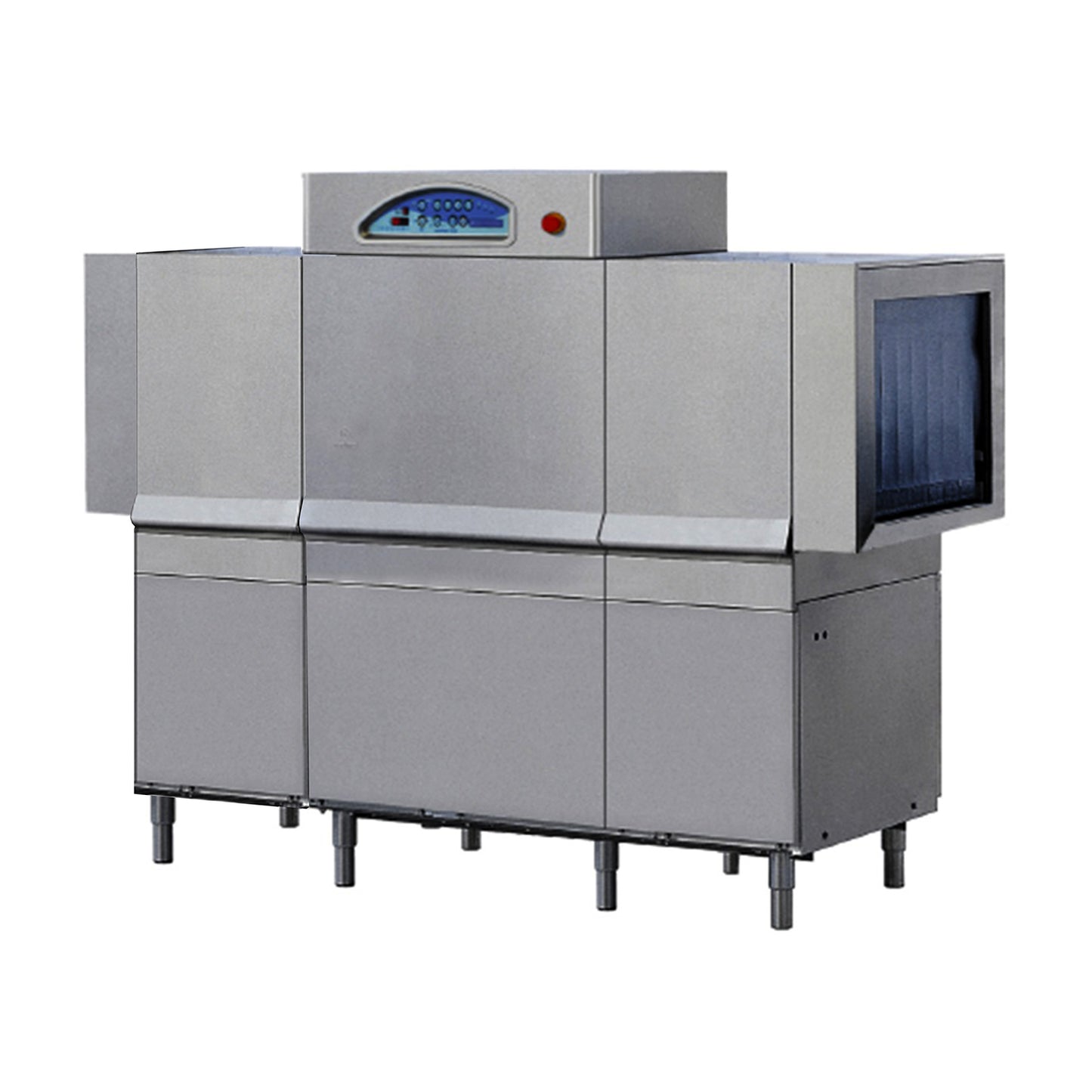

MATIC-49 RACK CONVEYOR 7 BASKETS

Features:

• CHARACTERISTICS
• Body and tank in stainless steel construction 18/10 AISI 304,
• *Tunnel composition:
• 1 Pre-wash - wash arms : 3 upper + 1 lower
• 1 Wash - wash arms : 5 upper + 3 lower
• 1 Ecorinse (additional rinse) - rinse arms : 1 upper + 1 lower
• 1 Rinse - rinse arms : 1 upper + 1 lower
• Completely automatic,
• *Pre-washing (40°C)
• Upper and lower fixed washing (60°C)
• Upper and lower fixed rinsing (85-90°C)
• *Ecorinse system for reduction in consumption of water, energy, detergent
• Washing and rinsing arms in stainless steel constructions,
• easy disassembly and interchangeable,
• Double skin with thermic and acoustic insulation ;
• Slanted tank with rounded edges,
• Stainless steel autodraining washing pump,
• Counterbalanced door
• *Front panel composition ::
• Main ON/OFF switch;
• Start pushbutton
• Stop Pushbutton
• Speed selector
• Machine ON indicator
• Machine ready indicator
• Overload cutout indicator
• Electronic tank thermometers
• Water protection
• Frontal maintenance
• Automatic tank loading
• Thermometers for automatic control temperatures of the wash and rinse water
• Rinse economizer
• Tank and pump filters
• Insulated Boiler
• SAFETY
• Adjustable and strong feet
• Pressure-switch protection for Heating elements
• Thermic protection for washing pump
• Automatic stopping of pull-through in case of foreign bodies
• Low voltage control circuit (24V) fro greater safety during work operation
• Dishes (Stop with End Micro-switch on the exit table)
• Door opening safety device

Specifications:

• Two automatic speeds
• 1st Speed 1,250 mt/m'; 2nd speed 2,080 mt/m'
• Hour capacity: 2400/4000 dishes/H
• Hour baskets production : 150/250
• Max dimensions for wash : 420 mm heigth - 500 mm width
• Basket dimensions: 500x500 mm
• Pre-washing pump : 1,1 kW
• Washing pump: 3 kW
• Tank heating : 9 kW (electric-55°) 21 kg/h (steam)
• Boiler heating: 24 kW (55°) 33 kW (water 12°) (electric)
• 31 kg/h (55°) 57 kg/h (12°) (steam)
• Geared motor: 0,15 kW
• Total power: 40,4 kW (55° electric)
• 49,4 kW (12° electric)
• 52 kg/h (55° steam)
• 78 kg/h (12° steam)
• Voltage 400V/3/50Hz
• Low-voltage control circuit 24V
• Cycle water consumption : 300 liters/h
• Hardness between 5° and 10°F
• Rinsing water temperature: 85-90°C
• Dimensions : 2500x815x h1785mm
• Noise: dB<66 Net Weight : 375 kg
• Dimensions: 2500x815x h1785mm
• Weight: 375kg

Warranty:

• Contact us for warranty details
