- Stainless steel structure 18/10 AISI 304
- Soft-touch electronic control panel
- Digital thermometers. Tank with double wall
- Self–cleaning tank with slanting bottom
- Counterbalanced hood
- Stainless steel upper and lower arms ( wash & rinse )
Specifications:

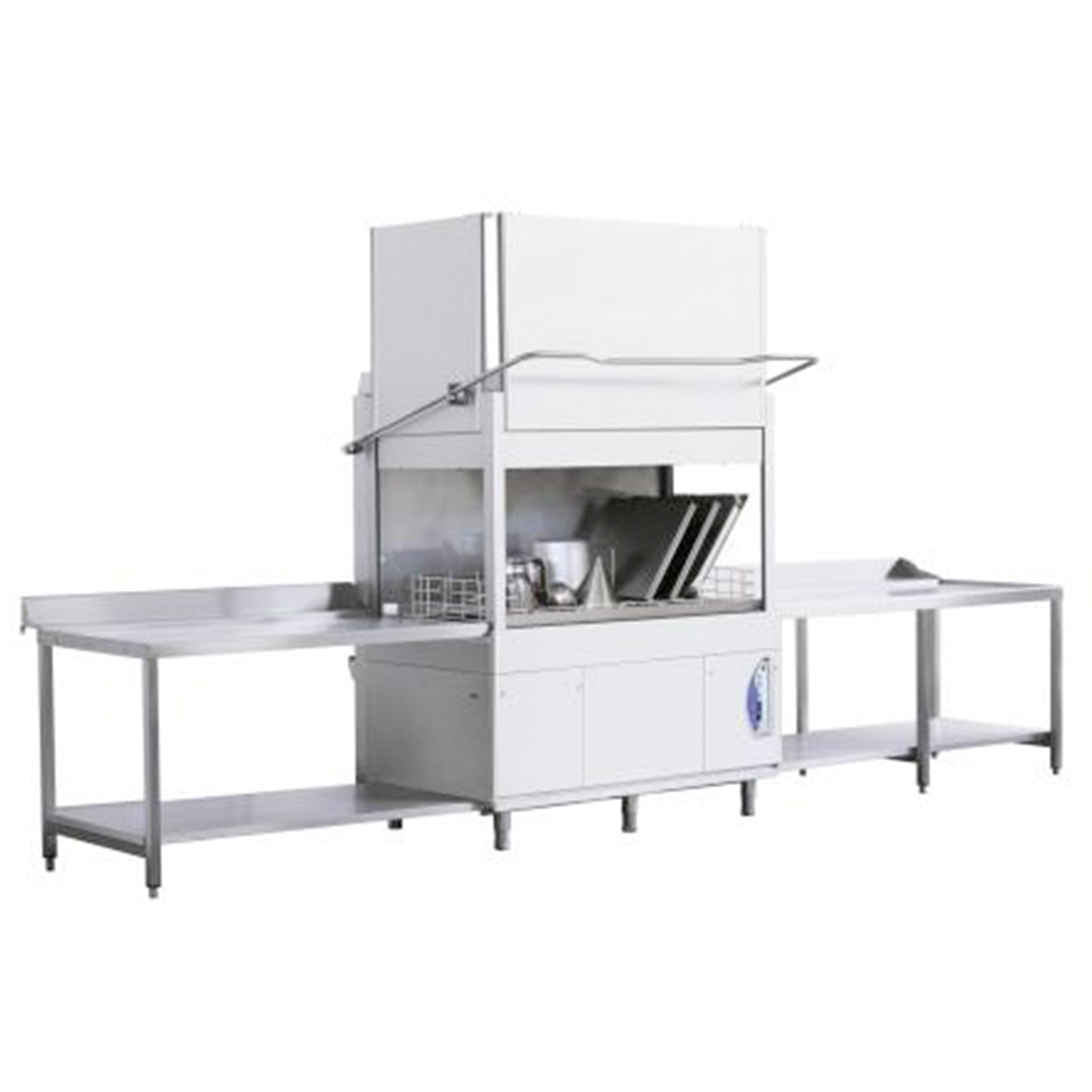

- Electronic Pot-washing machine
- Volt 400/3N/50 Hz - Linear version
- Manual lifting
- Interactive graphic display and complete programming of all the washing parameters
- Double INSULATING WALL
- Washing-period cycle 2'-4'-7' min.-infinity
- Baskets 8,12,20 Per/Hour
- TANK with SLANTING BOTTOM
***2 Washing pumps in stainless steel ***
- Self-draining wash pumps
- RINSE pump in stainless steel
- Double boiler 6+6 kW
- Integral tank filters
- Steam condenser with heat regeneration
- Hot and Cold water inlet
- Total rating 18.000 W"
- Auto tank filling, door safety device, Safety thermostat.
- Stainless steel
- Basket: 1350 x 700
- Clearance 640 mm.
- Water consumption 12lt p/c- noise <70 db.
- Dimension: W1535 x D1080 x H1870mm/H2200mm with steam condenser
- Working Height: 865mm
- Volt 400/3/N/50 Hz
- Tank capacity 177lt
- Rinse boiler 12 lt
- Weight: 480kg
Double Insulated hood /door Add $ 1710.00 + GST
Please advise if the unit is the corner
Commissioning & Training by HE2020 approved Service contractor
Warranty: 12 months labor, 36 months parts
